100mm VESA To SSD 3d Printable Object

Categories: [3d Printing]
Tags: [raspberry pi]

I made a 3d printable VESA-to-SSD plate available for download here at Printables.com.

Description

This 3d printable plate has screw holes for a 100mm VESA mount and a 2.5" SSD. The "riser" height is 8mm with a 2mm plate depth, for a total of 10mm of added depth. Typical SSDs should have 1-2mm of clearance.

Download it here at printables.com.

I used it with my raspberry pi that needs extra storage attached, but it could be behind your monitor too.

If you're using counter-sunk screws, mounting the SSD "inside" the plate will have a flush bottom.

Photos

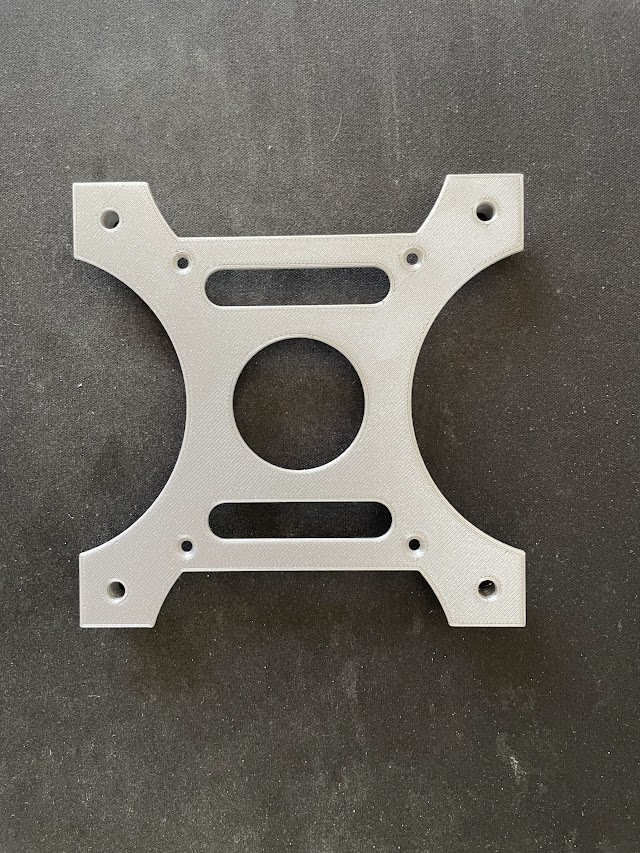

Flat bottom of the plate with countersunk holes. Flat bottom of the plate with countersunk holes.

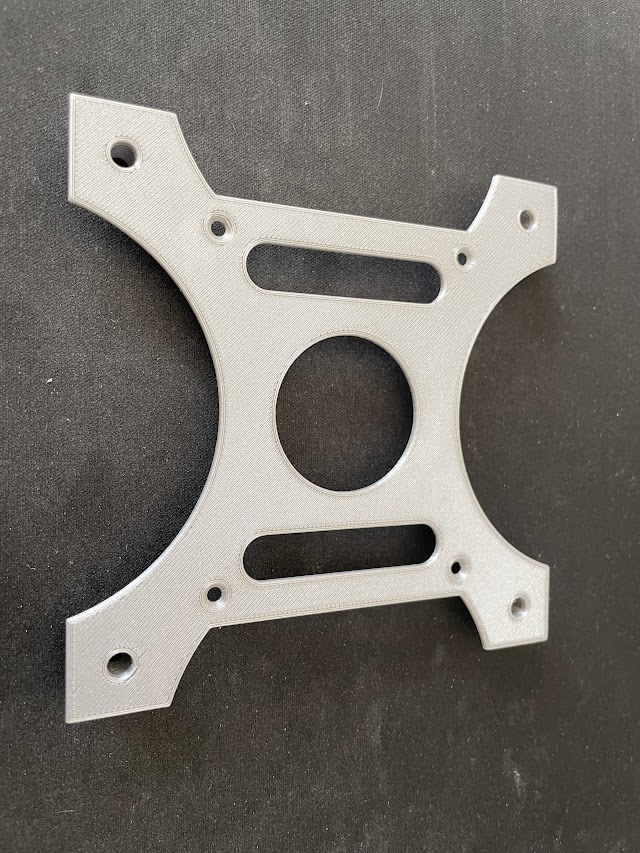

Flat bottom of the plate at an angle. Flat bottom of the plate at an angle.

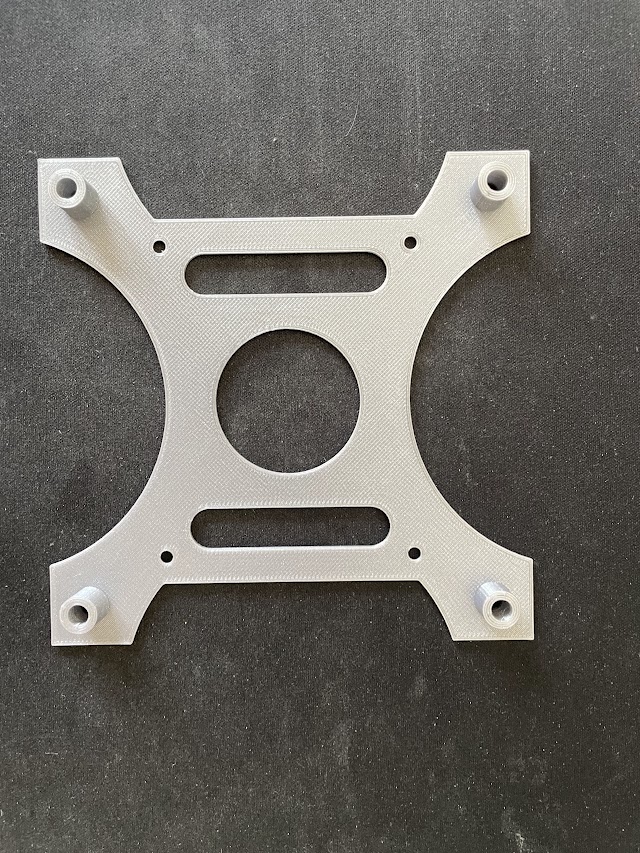

Top of the plate showing the riser depth. Top of the plate showing the riser depth.

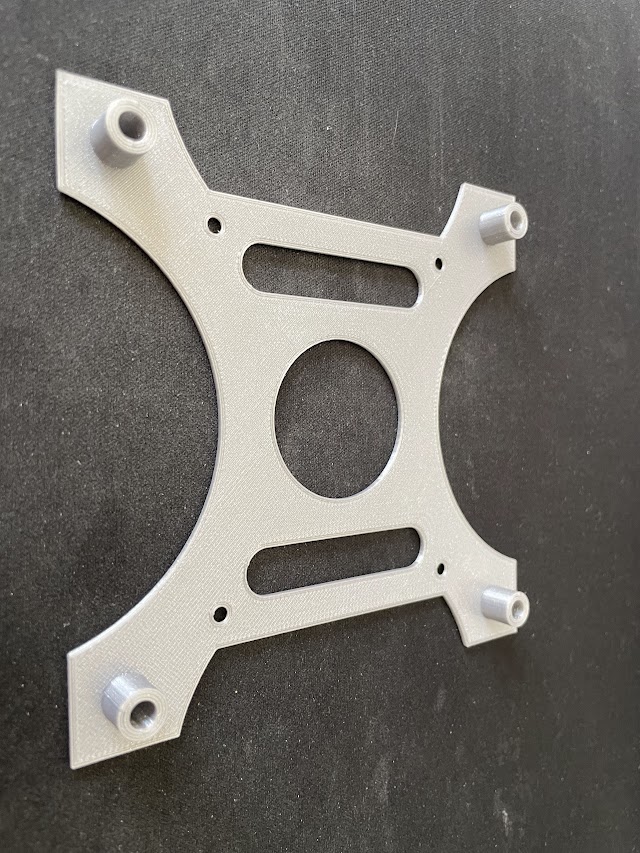

Top of the plate at an angle. Top of the plate at an angle.

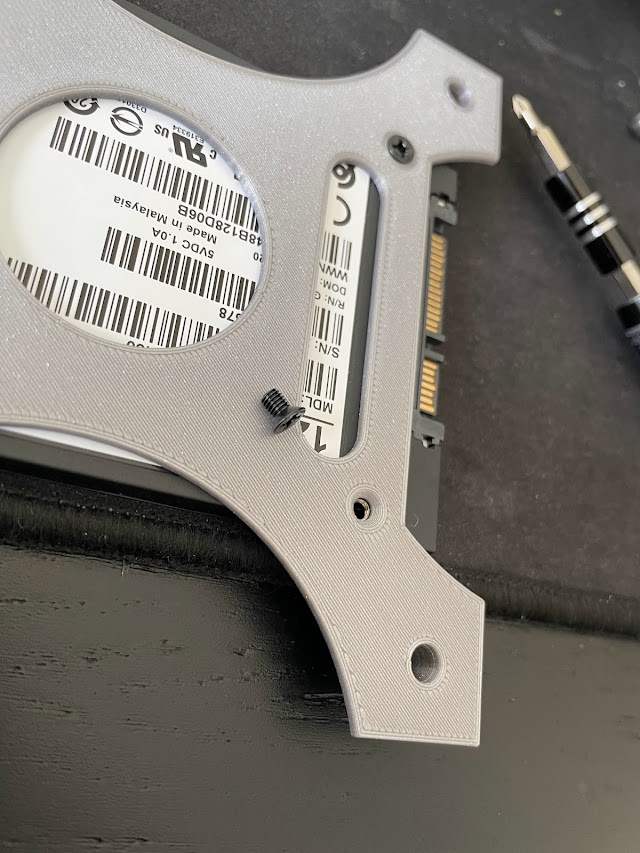

SSD mounted inside the riser area. SSD mounted inside the riser area.

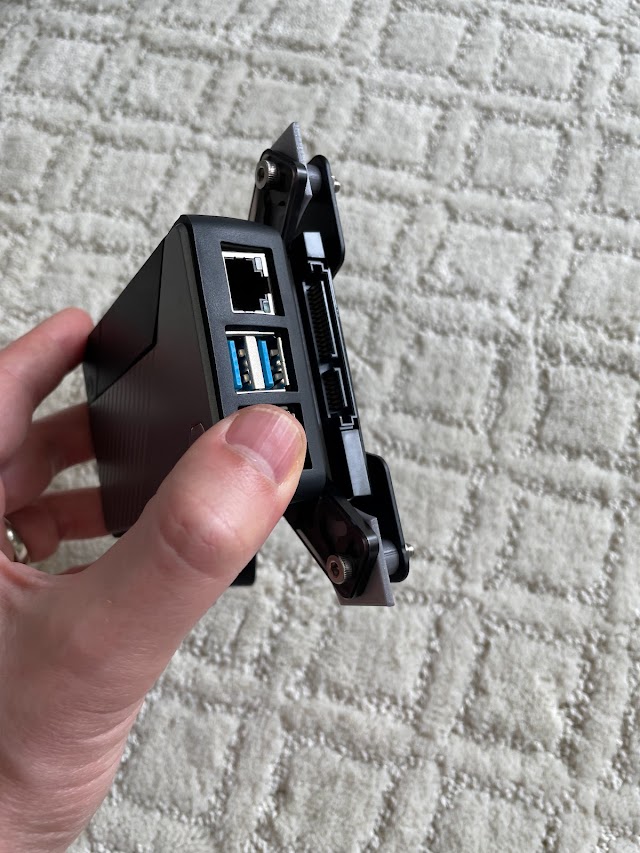

Final Raspberry Pi in a Coolermaster case with an SSD and VESA mounting plate. Final Raspberry Pi in a Coolermaster case with an SSD and VESA mounting plate.
